Dimensions of Dockrell 17
Selected Measurements for Dockrell 17
Links to our Multi Vendor Used Sail Directory for Dockrell 17
Other Data Base Entries for dockrell 17*Click on boat nane to use
Sail Area Calculations
The following formulas are approximate
Sail areas depend on lots of factors, leach hollow, foot round, luff hollow etc. Also, remember that jib sail area in general is based on the forestay length, I. But all things considered, these numbers are close but should not be considered exact. They are rules of thumb, not measurements of a this specific boat.
MainsailMainsail = (P x E) / 2 = 207 sq ft
Racing Mainsail (add 10%) = 228 sq ft
Genoa155% Genoa = (( J x I ) / 2) x 1.65 = 470 sq ft
135% Genoa = (( J x I ) / 2) x 1.44 = 410 sq ft
100% Jib = ( I x J ) / 2 = 285 sq ft
A more accurate LP calculator is HERE
SpinnakerSpinnaker Area = Max Luff x Max Girth x ( 70-85%) = 734 to 891 sq ft
"Square" Spinnaker Area = Max Luff x Max Girth) = 1048 sq ft
AC Area = 873 sq ft
Maximum Luff (.95 * sqrt (JSP^2 + ISP^2) = 38.81 feet
Maximum Girth = 1.8 * JSP = 27 feet

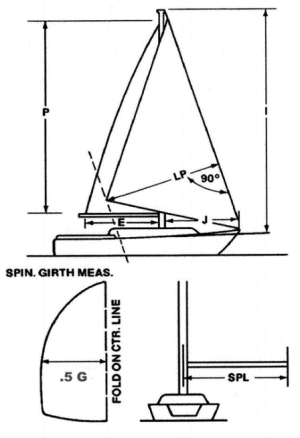

DEFINITIONS"P" is the luff length of the mainsail, measured along the aft face of the mast from the top of the boom to the highest point that the mainsail can be hoisted or black band.
"E" is the foot length of the mainsail, measured along the boom from the aft face of the mast to the outermost point on the boom to which the main can be pulled or to the black band.
"I" is measured along the front of mast from the genoa halyard to the main deck. The main deck is where the deck would be if there were no deckhouse.
"J" is the base of the foretriangle measured along the deck from the headstay pin to the front of the mast.
"JSP" is the length of the spinnaker pole or the distance from the forward end of the bowsprit (fully extended) to the front face of the mast.
"ISP" is measured from the highest spinnaker halyard to the deck.
"PY" and "EY" are, respectively the luff length and foot length of the mizzen of a yawl or ketch measured in the same way as for the mainsail.
"IY" is the measurement from the staysail halyard to the deck.
"JY" is the measurement from the staysail stay to the front face of the mast.
"LP" is the shortest distance between the clew and the luff of the genoa.
Data*This data is supplied as a reference and all boat dimensions should be verified before using it in any critical application.
The information in these data bases is a starting point. There are errors as you can see as the different data bases do not always agree. In addition, some boats have been modified from stock and will not match the data in these databases. None of this data has been checked by L-36.com so please always check your boat before relying on this data.
Data is from a variety of sources.
db = WEB is the commonly available data found on many web sites
db = BIG is a combination of all of the above.
